- Size: 52*30*48CM
- Place of Origin: GuangDong,China
- Brand Name: Power distribution unit
- Model Number: ORT-C13IP-8-CB
- Weight: 5.000 kg
| Model | ORT-C13IP-8-CB |
| Input characteristics | |
| Rated input voltage | 250VAC |
| Cable specification | 3G 1.5mm2 |
| Cable length | 2 meter |
| Max input current | 10A |
| Output characteristics | |
| Socket standard | IEC60320/C13 |
| Output quantity | 8 way |
| Rating output voltage | 250VAC |
| Max output current | 10A |
| Max output power | 2.5KW |
| Functions | |
| Control | Circuit breaker |
| Protection | LED display |
| Size | |
| Product size | LXWXH= 482.6X100X70mm (19 inch) |
| Mounting length | 461.6mm |
| Test items | |
| hi-pot test | PASS |
| Grounding | PASS |
| IR | PASS |
| Product color& material | |
| Product color: | Silverwhite or black |
| Shell material: | Aluminum alloy |
| Plastic flame retardant rating | UL94V-0 grade |
| Mounting | |
| Mounting method | Vertical installation |
1.2 Main function:
1.the total load current monitoring
2.the total input voltage monitoring
3.the total load power monitoring
4.The total power factor monitoring
5.the total electricity consumption monitoring
6.The output unit current monitoring
7.The output unit power monitoring
8.the environmental temperature and humidity monitoring
9.The total load current upper and lower limit settings
10.Each port remote control on/off

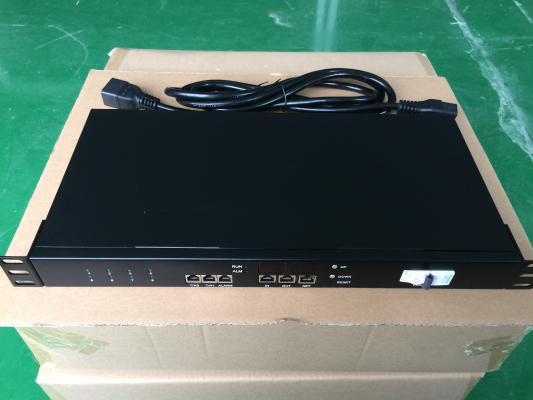

Hardware introduction
1, The digital tube display
2, Running lamp
3, ALARM abnormality lamp
4, The output unit LEDs
5, RESET
6, DOWN
7, UP
8, NET
9, Cascade interface
10, The temperature and humidity interface
11, External buzzer port
12, Mini circuit breaker
13, C20 input
14, 8 port C13 output
