Product Details
- Size: 52*30*48CM
- Place of Origin: GuangDong,China
- Brand Name: Power distribution unit

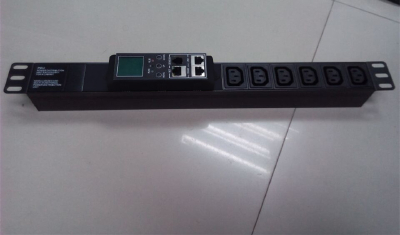

- Model Number: ORT-C13IP-6
- Weight: 3.000 kg
| Model | ORT-C13IP-6 |
| Input characteristics | |
| Rated input voltage | 250VAC |
| Cable specification | 3G 1.5mm2 |
| Cable length | 2 meter |
| Max input current | 10A |
| Output characteristics | |
| Socket standard | IEC60320/C13 |
| Output quantity | 6 way |
| Rating output voltage | 250VAC |
| Max output current | 10A |
| Max output power | 2.5KW |
| Functions | |
| Control | Current and voltage monitor |
| Protection | Alarm |
| Size | |
| Product size | LXWXH=482.6X44.4X44.5mm (19 inch) |
| Mounting length | 461.6mm |
| Test items | |
| hi-pot test | PASS |
| Grounding | PASS |
| IR | PASS |
| Product color& material | |
| Product color: | Silverwhite or black |
| Shell material: | Aluminum alloy |
| Plastic flame retardant rating | UL94V-0 grade |
| Mounting | |
| Mounting method | horizontal installation |
IP PDU Functions :
1. Monitoring the total load current
2. Monitoring the input voltage
3.Monitoring the load power
4. Monitoring the total electricity consumption
5. monitoring of overcurrent
6. monitoring of overvoltage
- Size: 52*30*48CM
- Place of Origin: GuangDong,China
- Brand Name: Power distribution unit
- Model Number: ORT-C13IP-6
- Weight: 3.000 kg
